THIRD SPACE

THIRD SPACE
MULTI BASS AMP
SIMPLIFIER BASS STATION

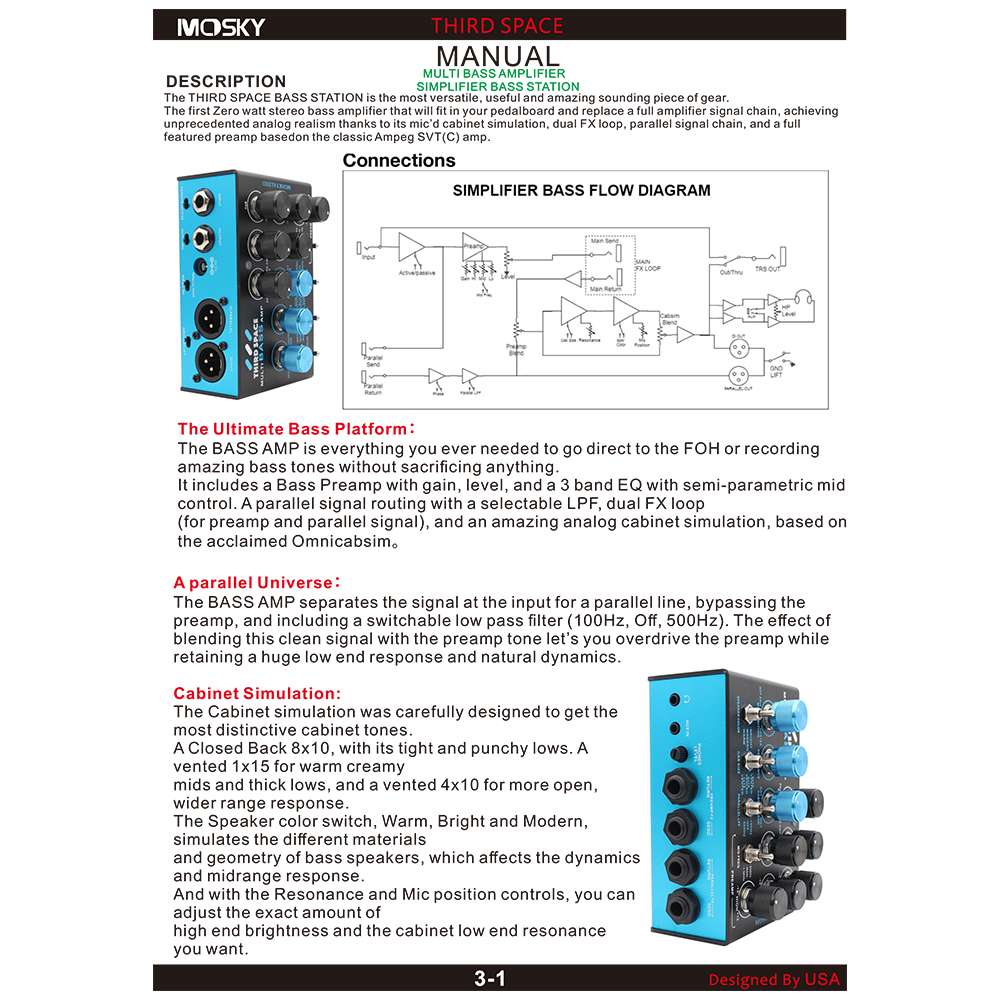

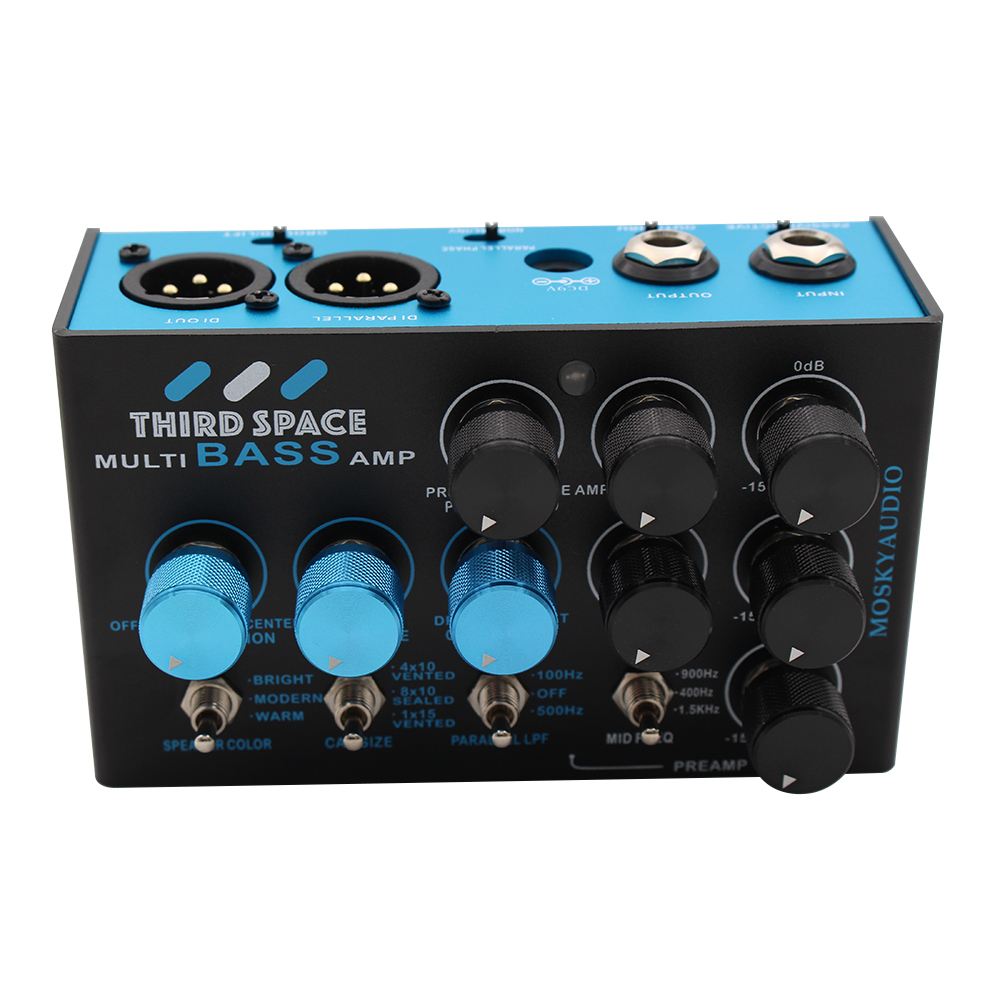

The THIRD SPACE BASS STATION is the most versatile, useful and amazing sounding piece of
gear. The first Zero watt stereo bass amplifier that will fit in your pedalboard and replace
a full amplifier signal chain, achieving unprecedented analog realism thanks to its mic’d
cabinet simulation, dual FX loop, parallel signal chain, and a full featured preamp based
on the classic Ampeg SVT(C) amp.

Versatile Preamp Stage：
The preamp stage is based on the Ampeg SVT ®. This amp stands out for it’s personality,  versatility and articulation. Including its flexible EQ with +- 15dB per band, and the switchable midrange from 400-900-1200Hz.
Across most of the gain settings, the amp is tight and clear. But with higher gains, it will grunt and growl like a real Ampeg SVT does.


The Ultimate Bass Platform：
The BASS AMP is everything you ever needed to go direct to the FOH or recording amazing bass tones without sacrificing anything.
It includes a Bass Preamp with gain, level, and a 3 band EQ with semi-parametric mid control. A parallel signal routing with a selectable LPF, dual FX loop (for preamp and parallel signal), and an amazing analog cabinet simulation, based on the acclaimed Omnicabsim

A parallel Universe：
The BASS AMP separates the signal at the input for a parallel line, bypassing the preamp, and including a switchable low pass filter (100Hz, Off, 500Hz). The effect of blending this clean signal with the preamp tone let’s you overdrive the preamp while retaining a huge low end response and natural dynamics.


Cabinet Simulation:
The Cabinet simulation was carefully designed to get the most distinctive cabinet tones. A Closed Back 8x10, with its tight and punchy lows. A vented 1x15 for warm creamy mids and thick lows, and a vented 4x10 for more open, wider range response.
The Speaker color switch, Warm, Bright and Modern, simulates the different materials and geometry of bass speakers, which affects the dynamics and midrange response.
And with the Resonance and Mic position controls, you can adjust the exact amount of high end brightness and the cabinet low end resonance you want.

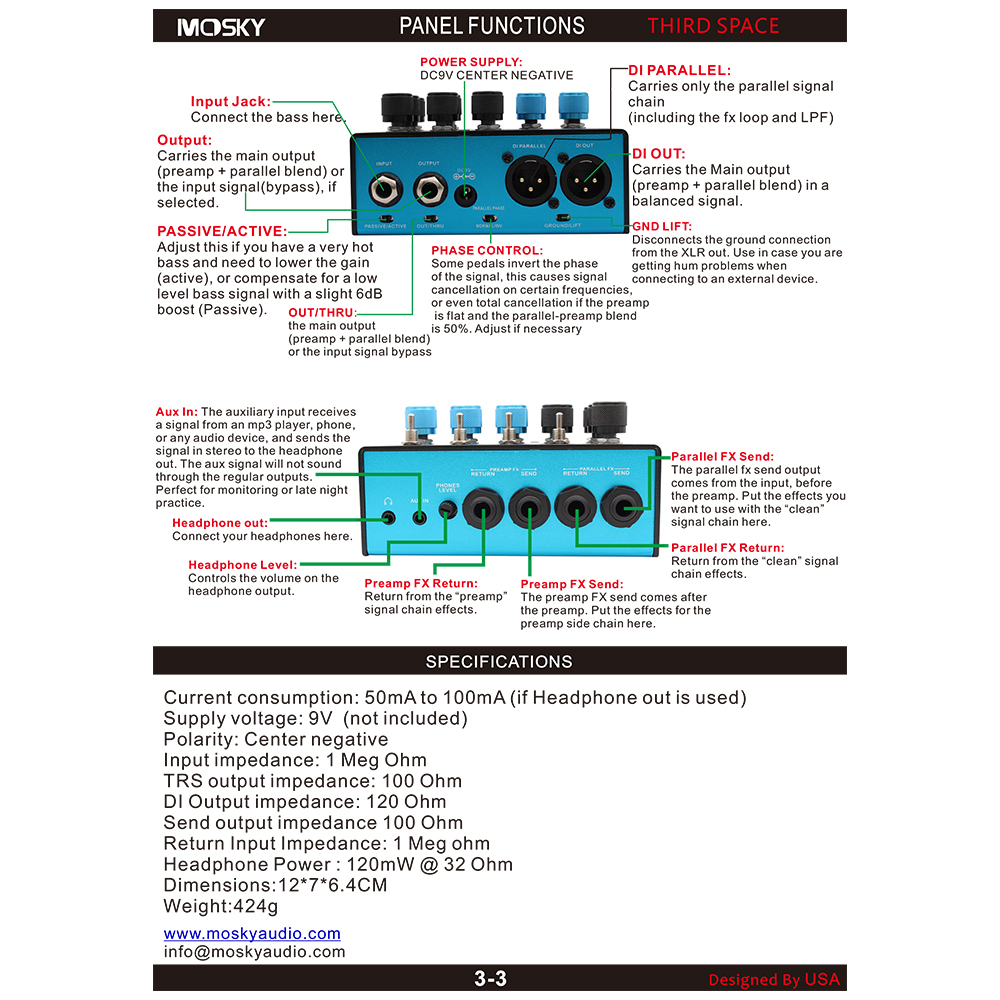

Connections

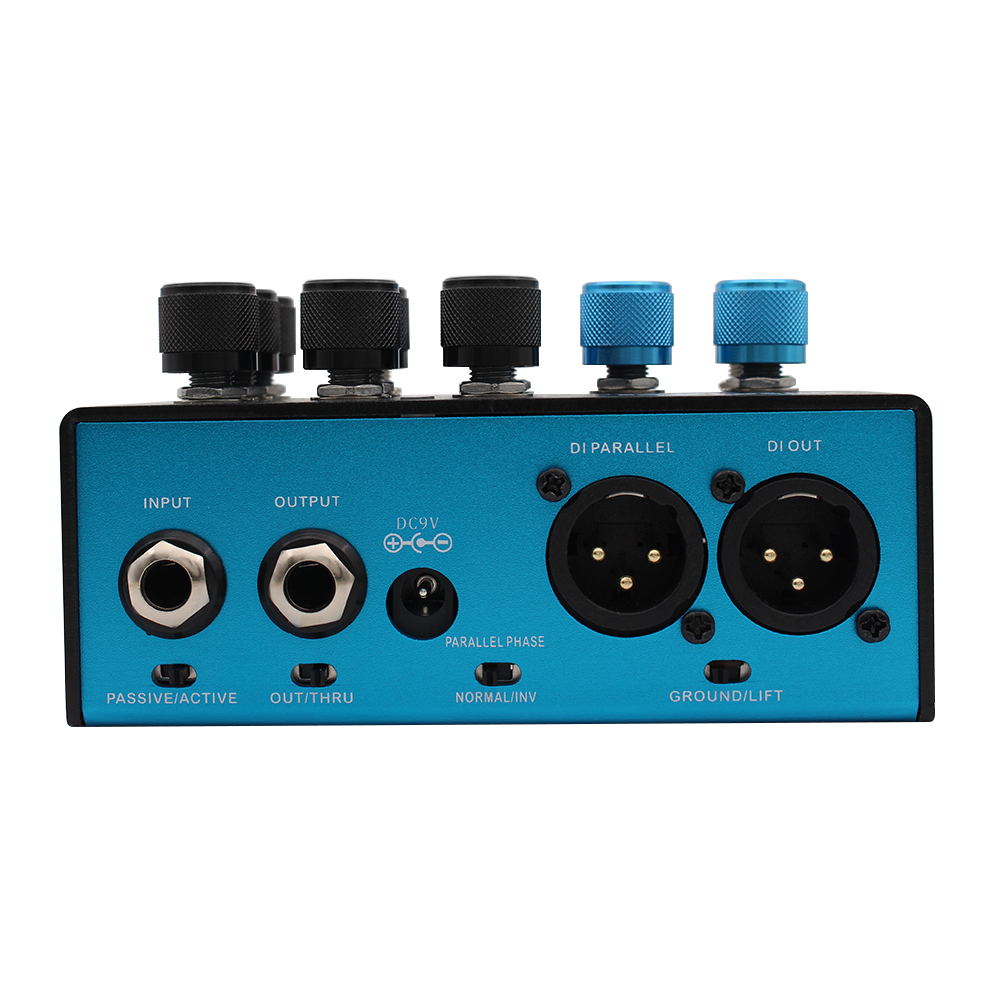

● Input Jack: Connect the bass here.

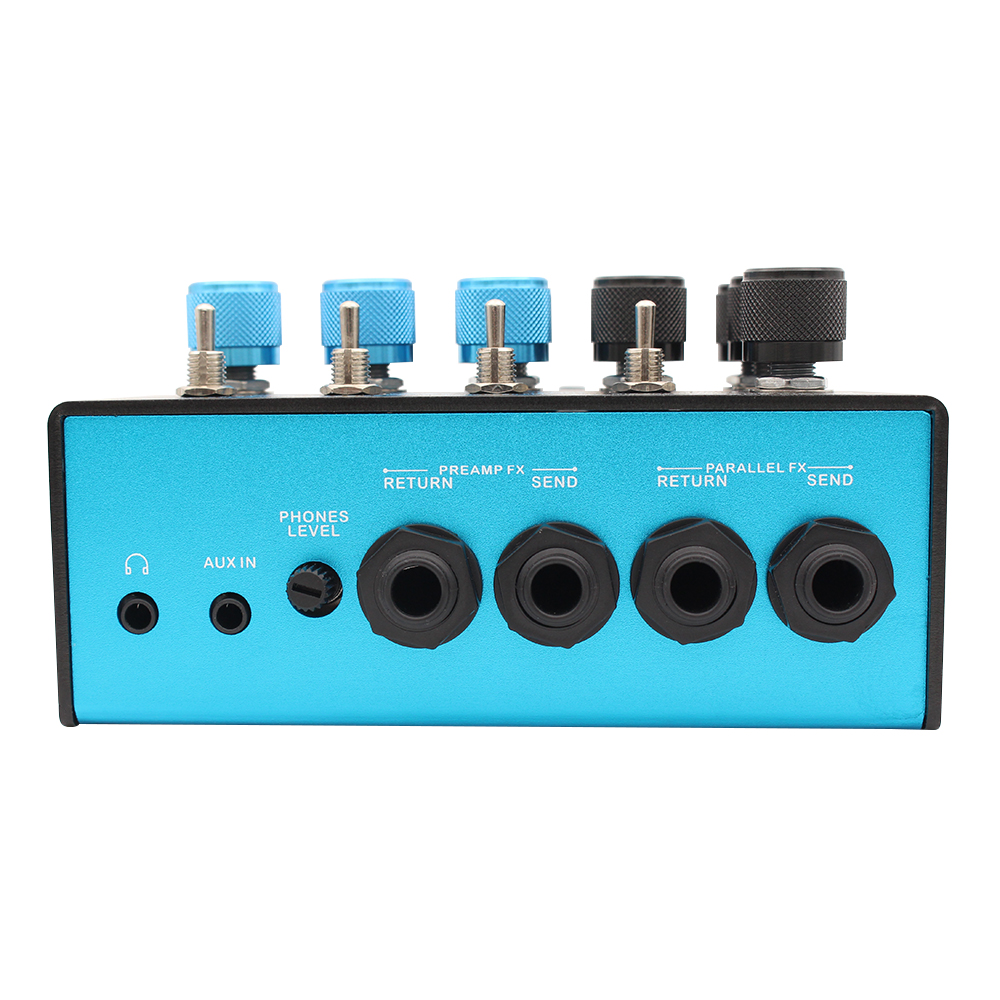

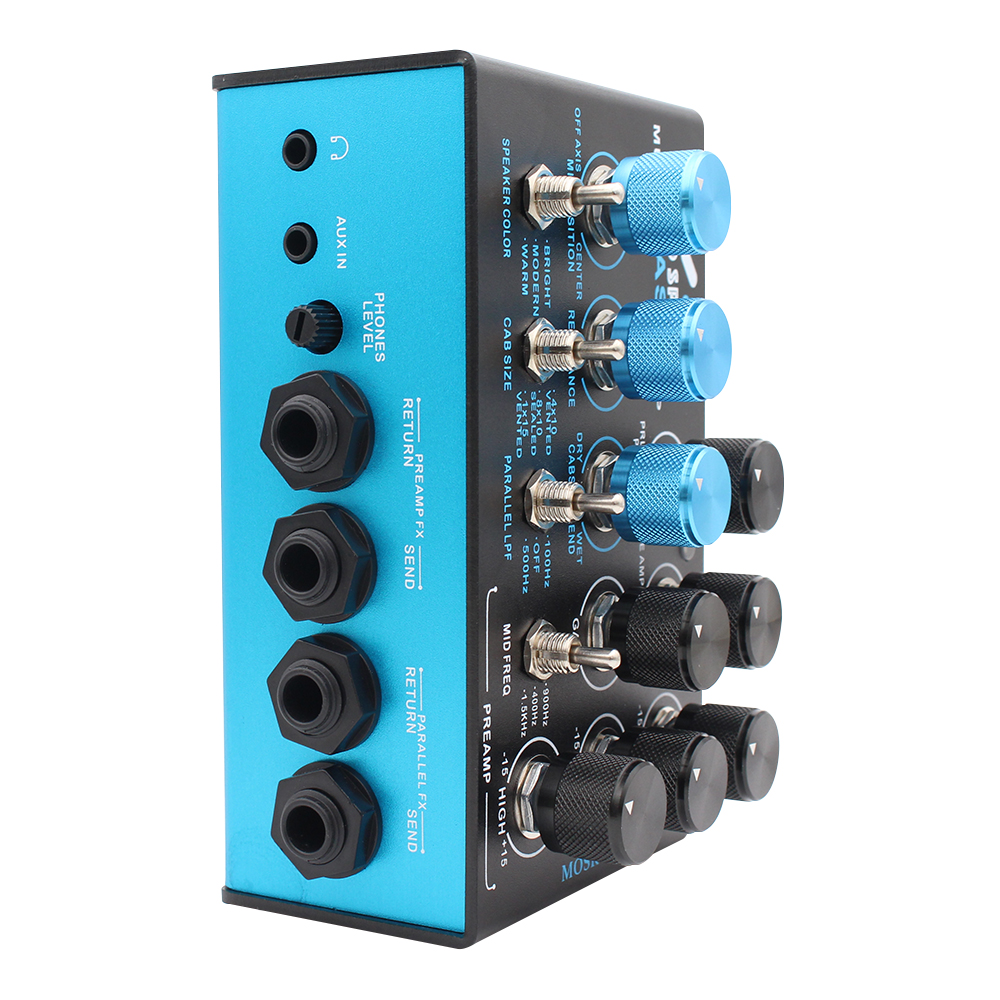

● Parallel FX Send: The parallel fx send output comes from the input, before the
preamp. Put the effects you want to use with the “clean” signal chain here.
● Parallel FX Return: Return from the “clean” signal chain effects.
● Preamp FX Send: The preamp FX send comes after the preamp. Put the effects
for the preamp side chain here.
● Preamp FX Return: Return from the “preamp” signal chain effects.
● TRS Out: Carries the main output (preamp + parallel blend) or the input signal
(bypass), if selected.
● DI OUT: Carries the Main output (preamp + parallel blend) in a balanced signal.\
● DI PARALLEL: Carries only the parallel signal chain (including the fx loop and
LPF)
● Aux In: The auxiliary input receives a signal from an mp3 player, phone, or any
audio device, and sends the signal in stereo to the headphone out. The aux signal
will not sound through the regular outputs. Perfect for monitoring or late night
practice.
● Headphone out: Connect your headphones here.

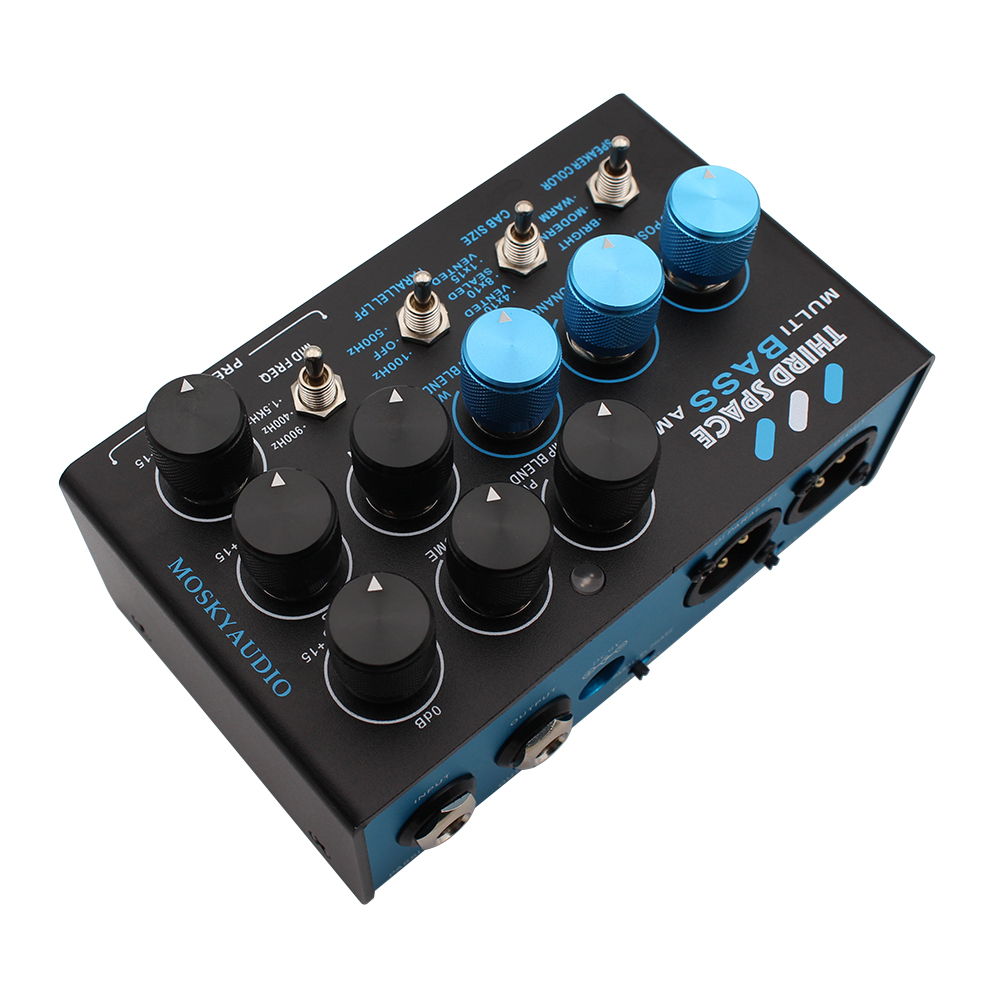

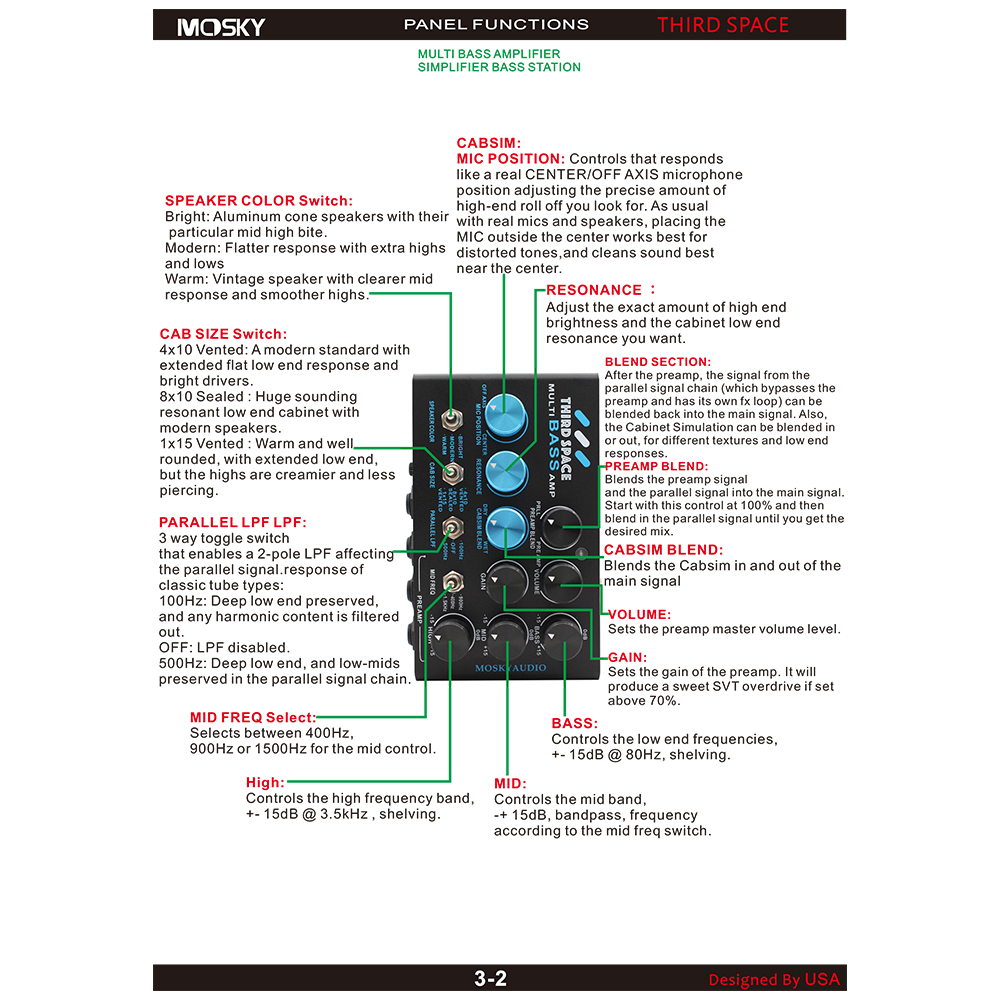

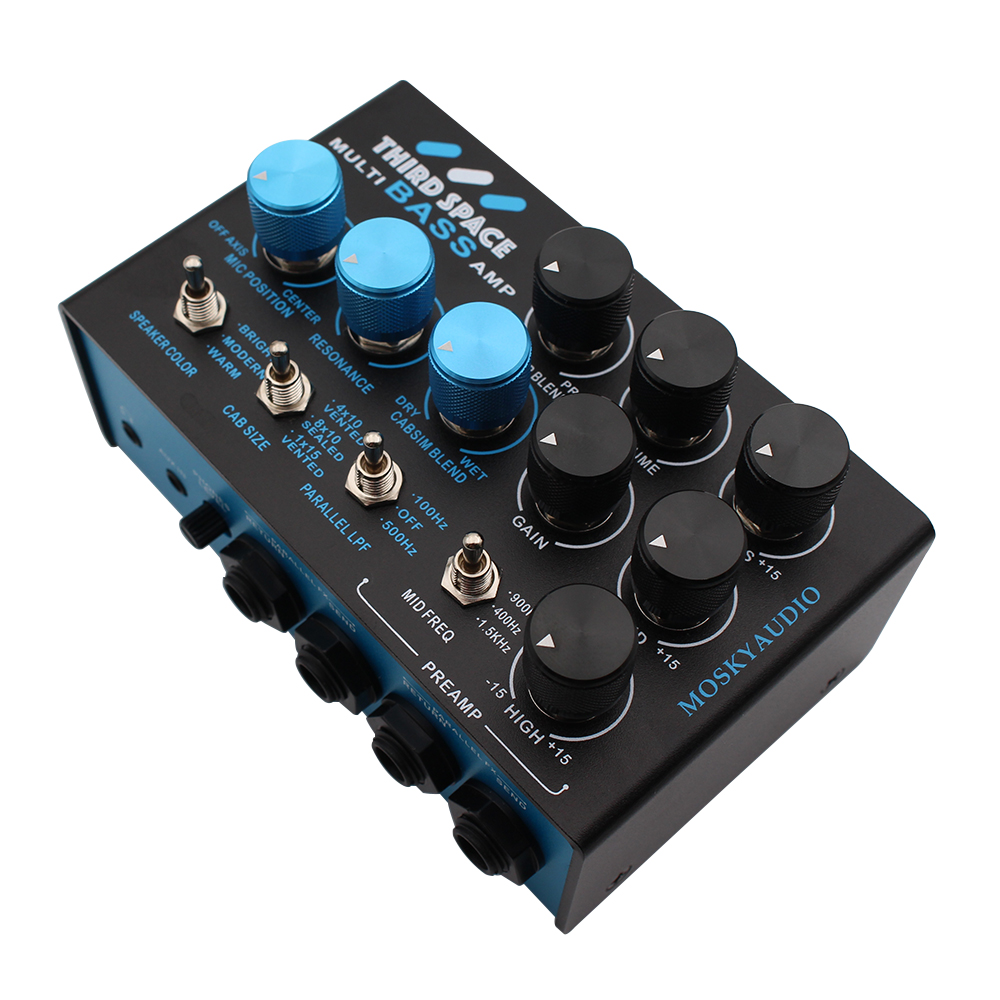

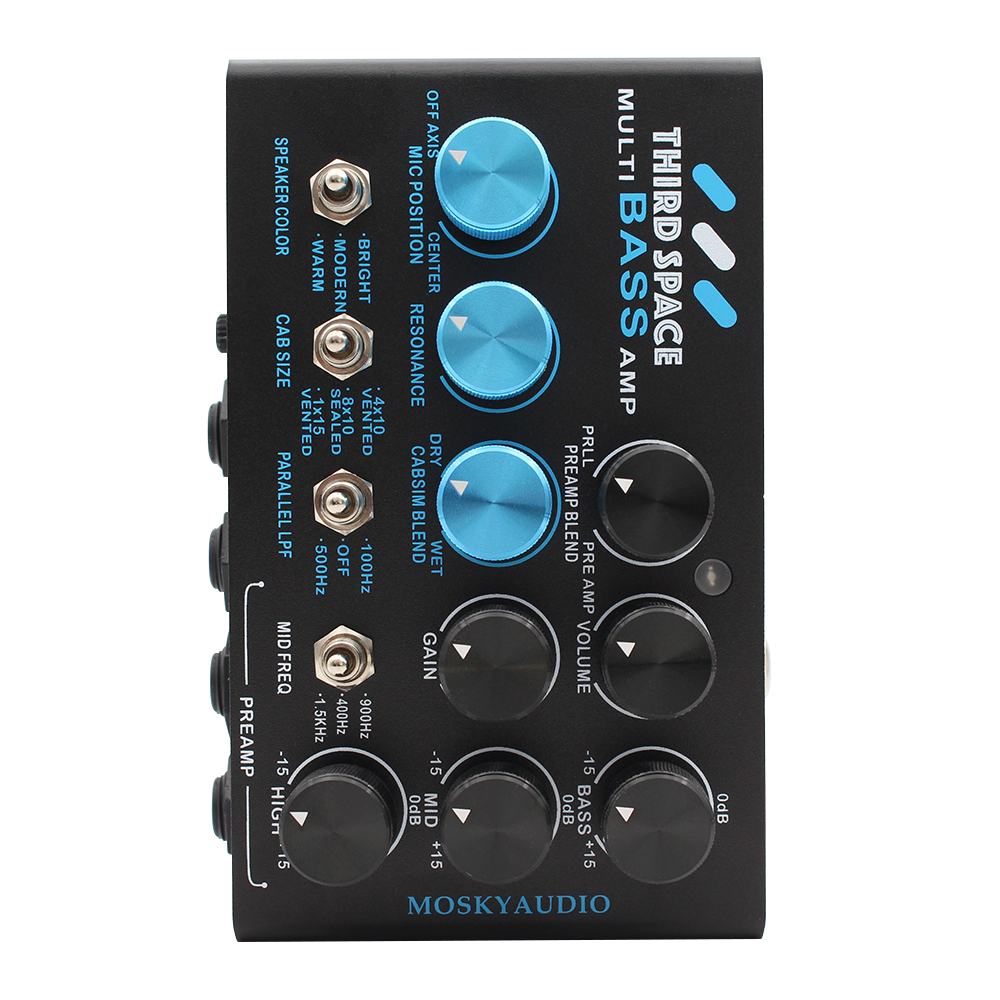

Preamp Section:
Gain: Sets the gain of the preamp. It will produce a sweet SVT overdrive if set above
70%.
Level: Sets the preamp master volume level.
Mid Select: Selects between 400Hz, 900Hz or 1500Hz for the mid control.
High: Controls the high frequency band, +- 15dB @ 3.5kHz , shelving.
Mids: Controls the mid band, -+ 15dB, bandpass, frequency according to the mid freq
switch.
Lows: Controls the low end frequencies, +- 15dB @ 80Hz, shelving.


Blend Section:
After the preamp, the signal from the parallel signal chain (which bypasses the preamp
and has its own fx loop) can be blended back into the main signal. Also, the Cabinet
Simulation can be blended in or out, for different textures and low end responses.
Preamp Blend: Blends the preamp signal and the parallel signal into the main signal.
Start with this control at 100% and then blend in the parallel signal until you get the
desired mix.
Cabsim Blend: Blends the Cabsim in and out of the main signal.
Parallel LPF: 3 way toggle switch that enables a 2-pole LPF affecting the parallel signal.
response of classic tube types:
100Hz: Deep low end preserved, and any harmonic content is filtered out.
OFF: LPF disabled.
500Hz: Deep low end, and low-mids preserved in the parallel signal chain.


Cabsim:
MIC POSITION: Controls that responds like a real CENTER/OFF AXIS microphone
position adjusting the precise amount of high-end roll off you look for. As usual with real
mics and speakers, placing the MIC outside the center works best for distorted tones,
and cleans sound best near the center.
Cab Size Switch:
4x10 Vented: A modern standard with extended flat low end response and bright
drivers.
8x10 Sealed : Huge sounding resonant low end cabinet with modern speakers.
1x15 Vented : Warm and well rounded, with extended low end, but the highs are
creamier and less piercing.
Speaker color Switch:
Bright: Aluminum cone speakers with their particular mid high bite.
Modern: Flatter response with extra highs and lows
Warm: Vintage speaker with clearer mid response and smoother highs



Other Switches and Controls:

PHASE CONTROL: Some pedals invert the phase of the signal, this causes signal
cancellation on certain frequencies, or even total cancellation if the preamp is flat and
the parallel-preamp blend is 50%. Adjust if necessary.
GND LIFT: Disconnects the ground connection from the XLR out. Use in case you are
getting hum problems when connecting to an external device.
Headphone Level: Controls the volume on the headphone output.
Active/passive: Adjust this if you have a very hot bass and need to lower the gain
(active), or compensate for a low level bass signal with a slight 6dB boost (Passive).
Headphone Level: Controls the volume on the headphone output.


Technical Specs
Current consumption: 50mA to 100mA (if Headphone out is used)
Supply voltage: 9V
Polarity: Center negative
Input impedance: 1 Meg Ohm
TRS output impedance: 100 Ohm
DI Output impedance: 120 Ohm
Send output impedance 100 Ohm
Return Input Impedance: 1 Meg ohm
Headphone Power : 120mW @ 32 Ohm
Dimensions:
Width : 120 mm
Height: 75 mm
Depth:65 mm
Weight: 424 g
