> Power Supply-Internal transformer

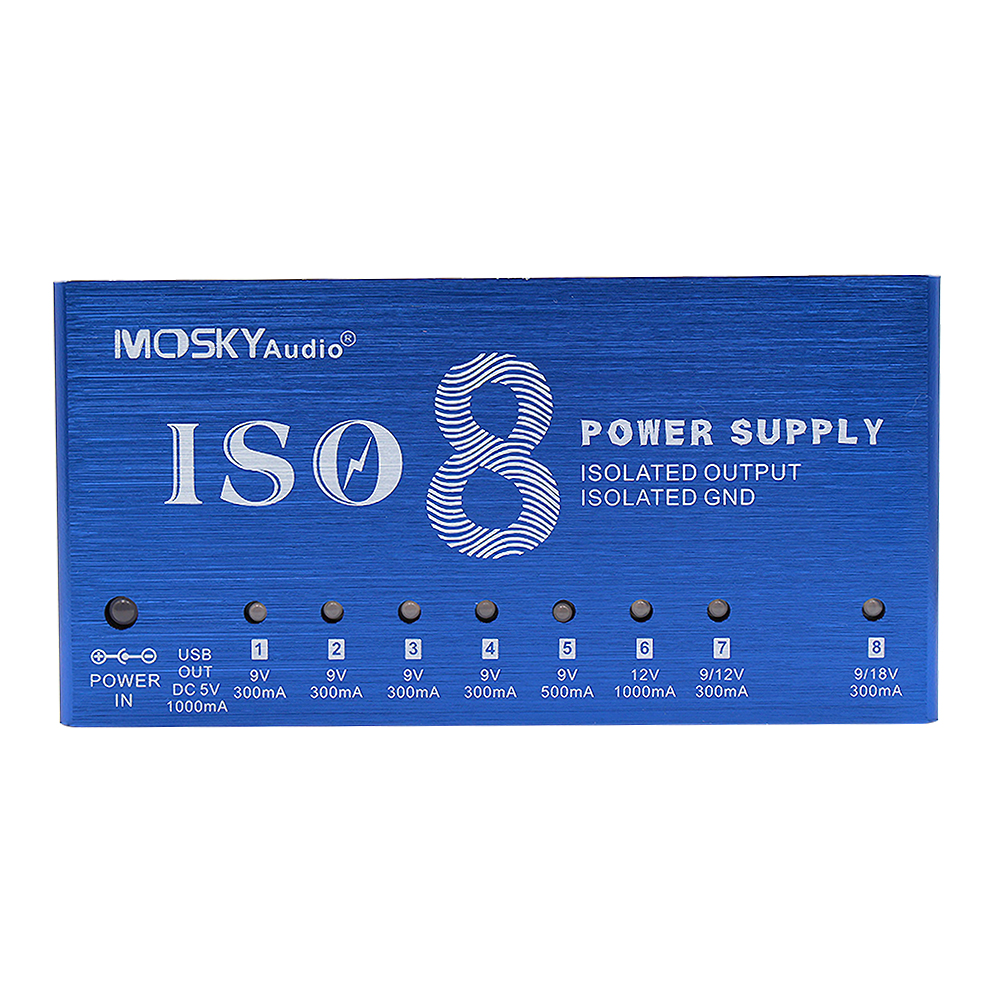

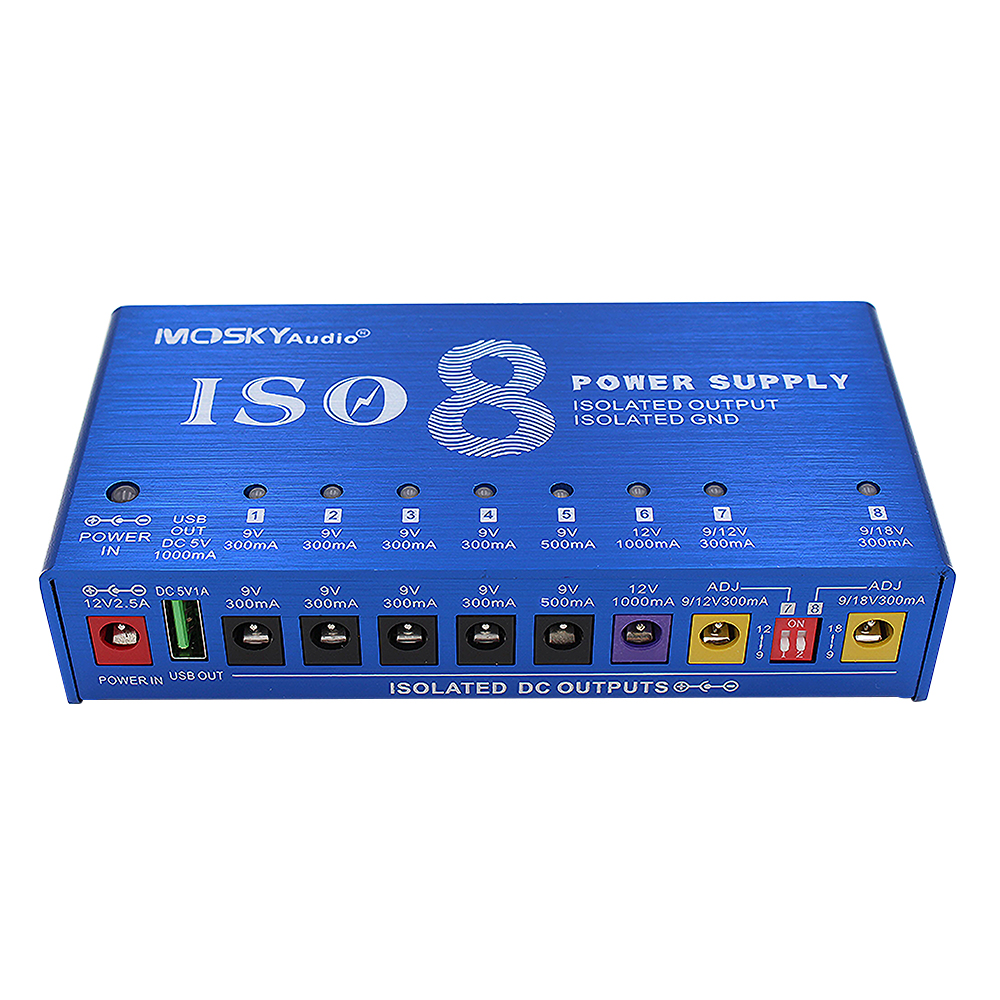

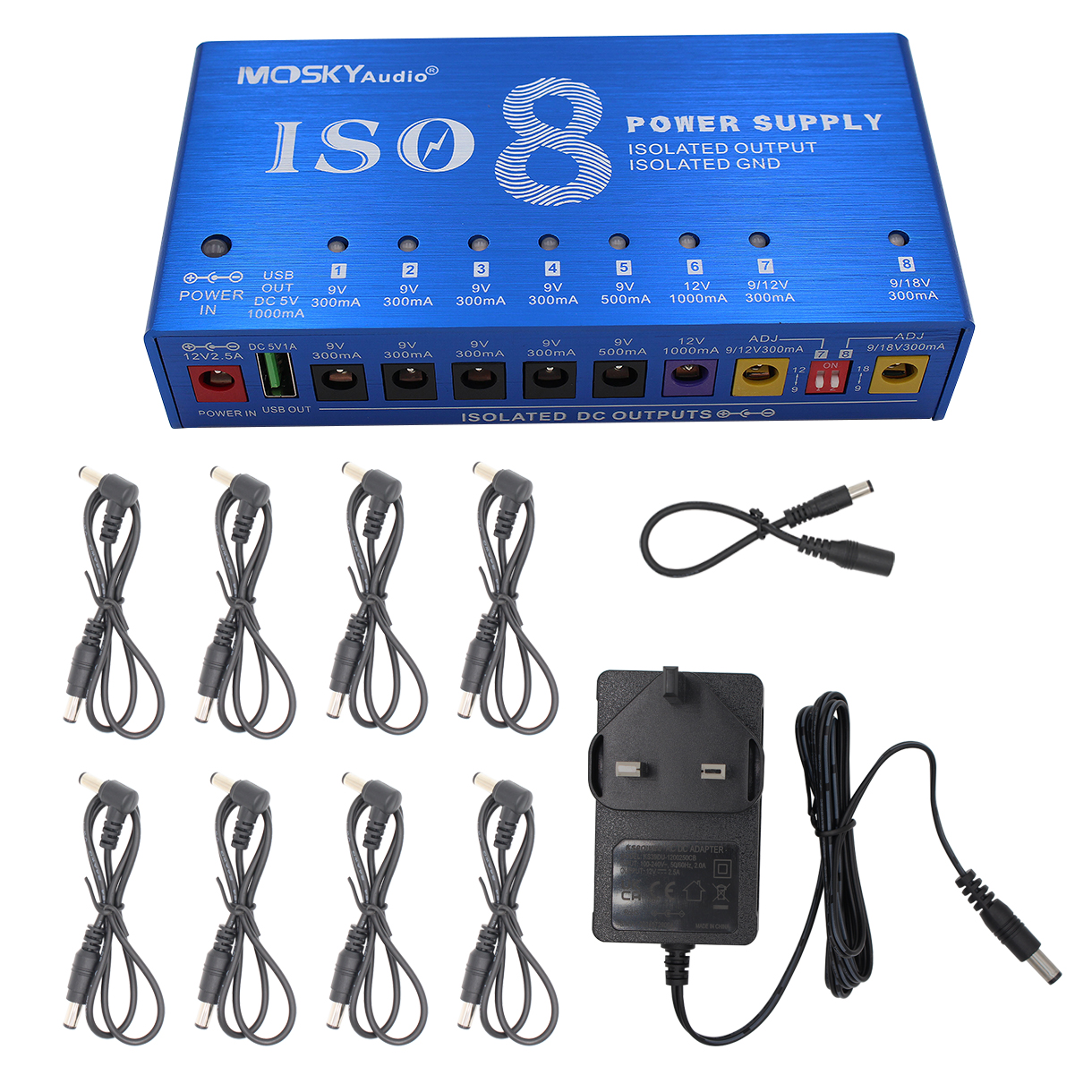

ISO8 POWER SUPPLY
- Product description:

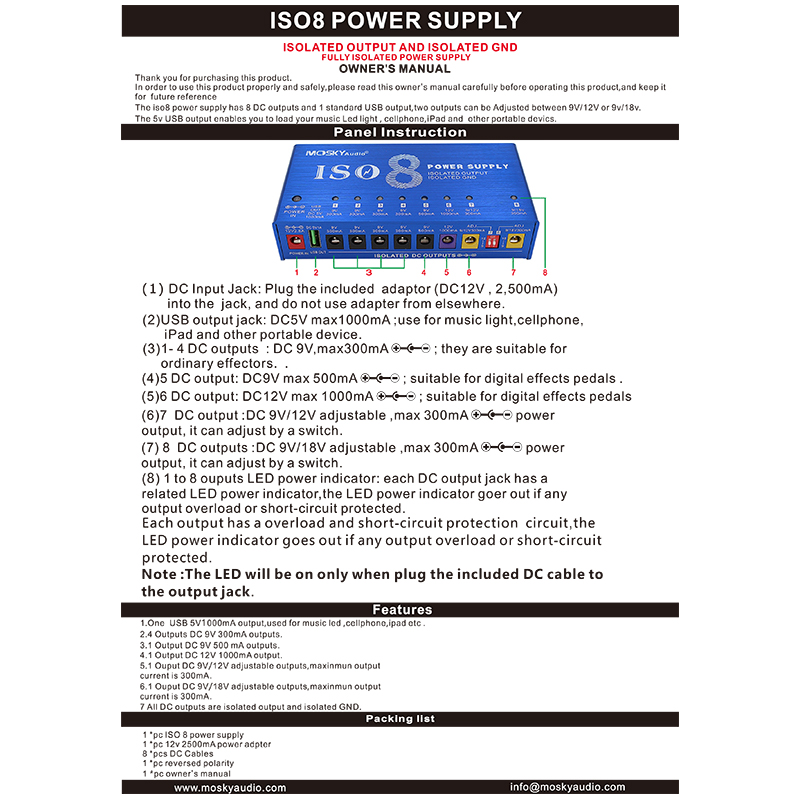

PRODUCT INTRODUCTION
ISO 8
POWER SUPPLY
ISOLATED OUTPUT
ISOLATED GND
FULLY ISOLATED POWER SUPPLY

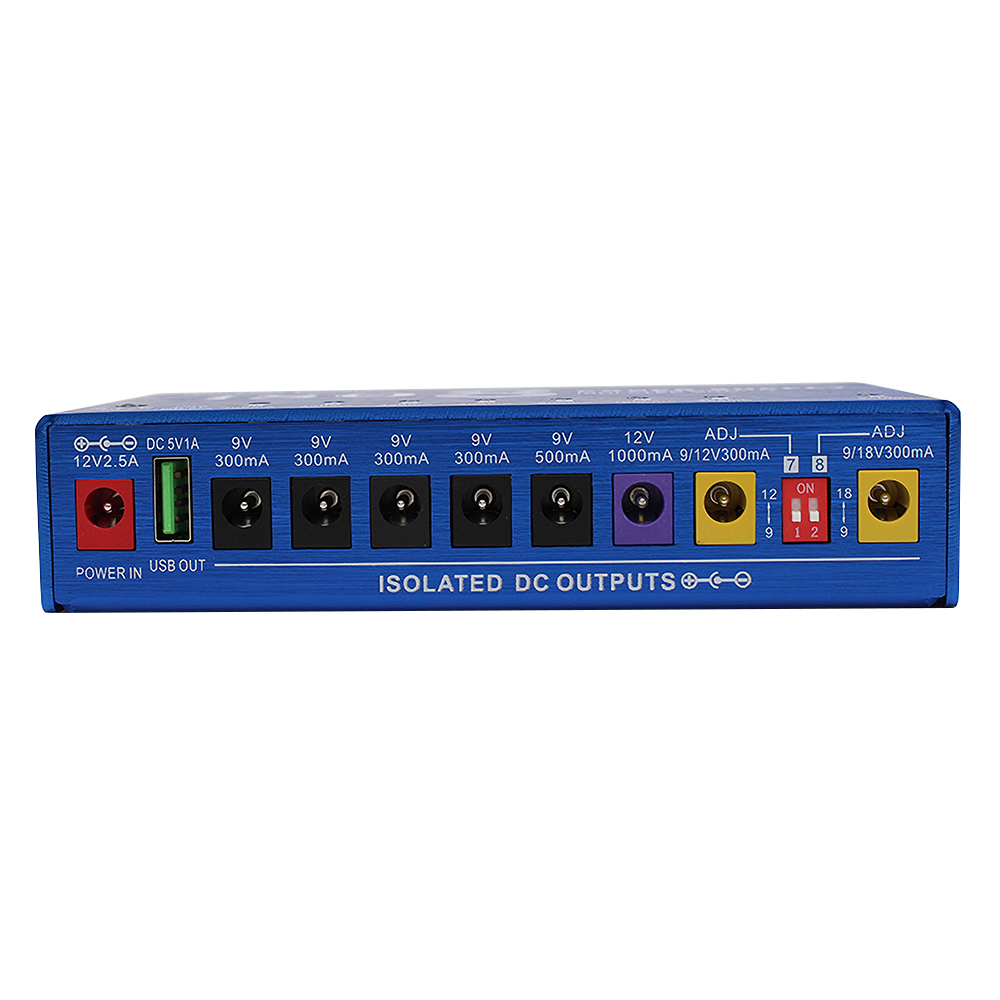

(1) DC Input Jack: Plug the included adaptor (DC12V , 2,500mA)
into the jack, and do not use adapter from elsewhere.
(2)USB output jack: DC5V max1000mA ;use for music light,cellphone,
iPad and other portable device.
(3)1- 4 DC outputs : DC 9V,max300mA ; they are suitable for
ordinary effectors.
(4)5 DC output: DC9V max 500mA ; suitable for digital effects pedals .
(5)6 DC output: DC12V max 1000mA ; suitable for digital effects pedals
(6)7 DC output :DC 9V/12V adjustable ,max 300mA power
output, it can adjust by a switch.
(7) 8 DC outputs :DC 9V/18V adjustable ,max 300mA power
output, it can adjust by a switch.
(8) 1 to 8 ouputs LED power indicator: each DC output jack has a
related LED power indicator,the LED power indicator goer out if any
output overload or short-circuit protected.
Each output has a overload and short-circuit protection circuit,the
LED power indicator goes out if any output overload or short-circuit
protected.
Note :The LED will be on only when plug the included DC cable to
the output jack.
Features:
1.One USB 5V1000mA output,used for music led ,cellphone,ipad etc .
2.4 Outputs DC 9V 300mA outputs
3.1 Output DC 9V 500 mA outputs
4.1 Output DC 12V 1000mA output
5.1 Ouput DC 9V/12V adjustable outputs,maxinmun output
current is 300mA
6.1 Ouput DC 9V/18V adjustable outputs,maxinmun output
current is 300mA
7 All DC outputs are isolated output and isolated GND

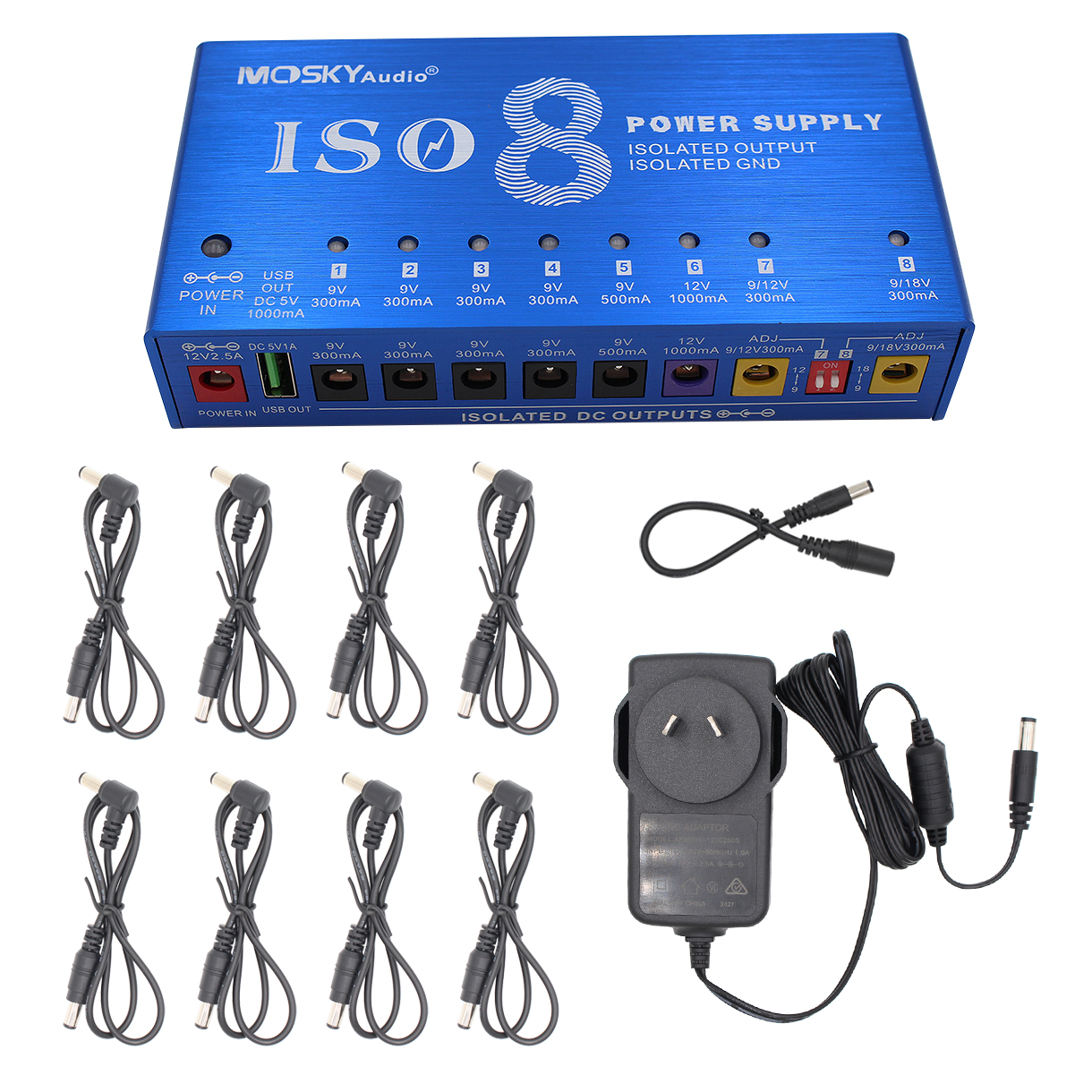

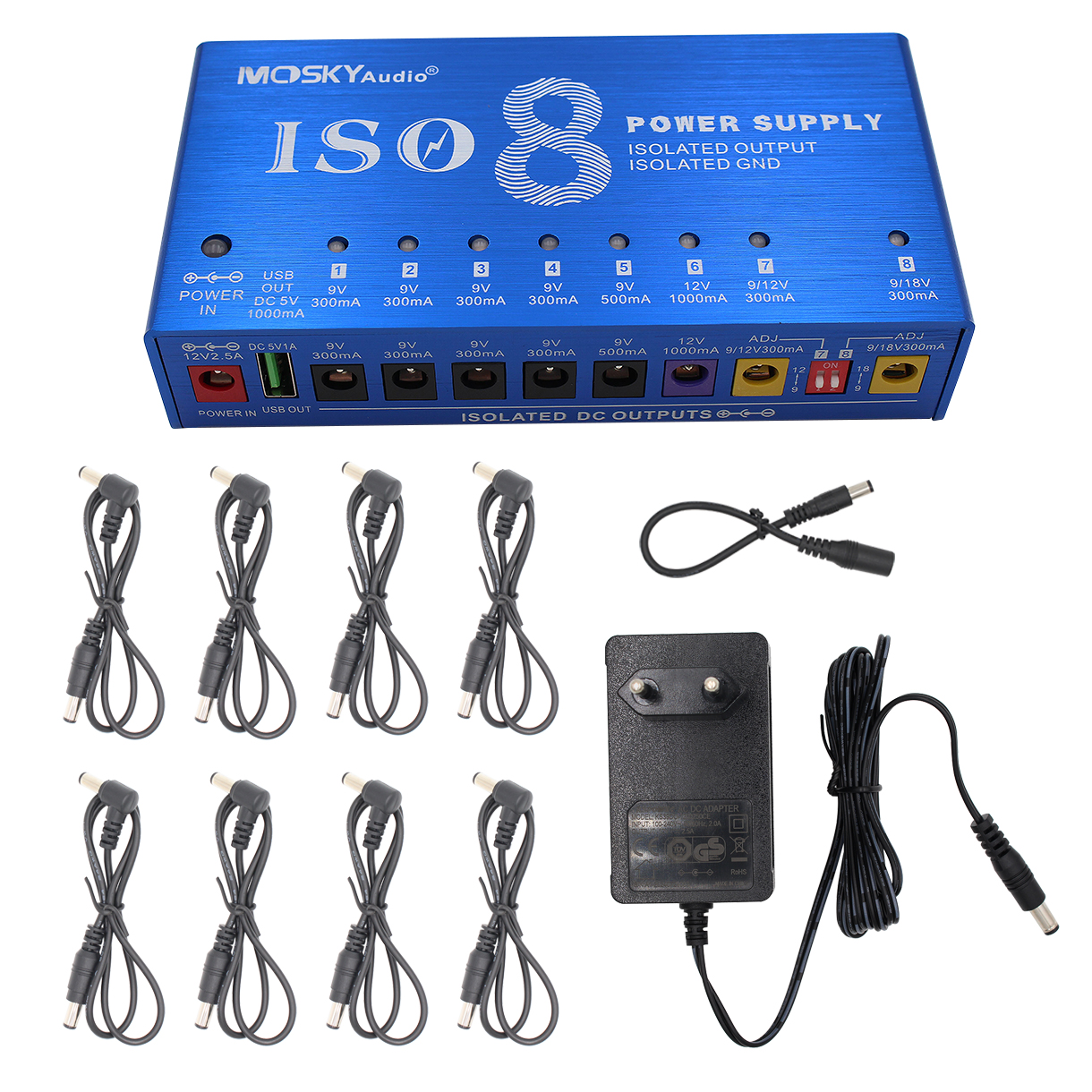

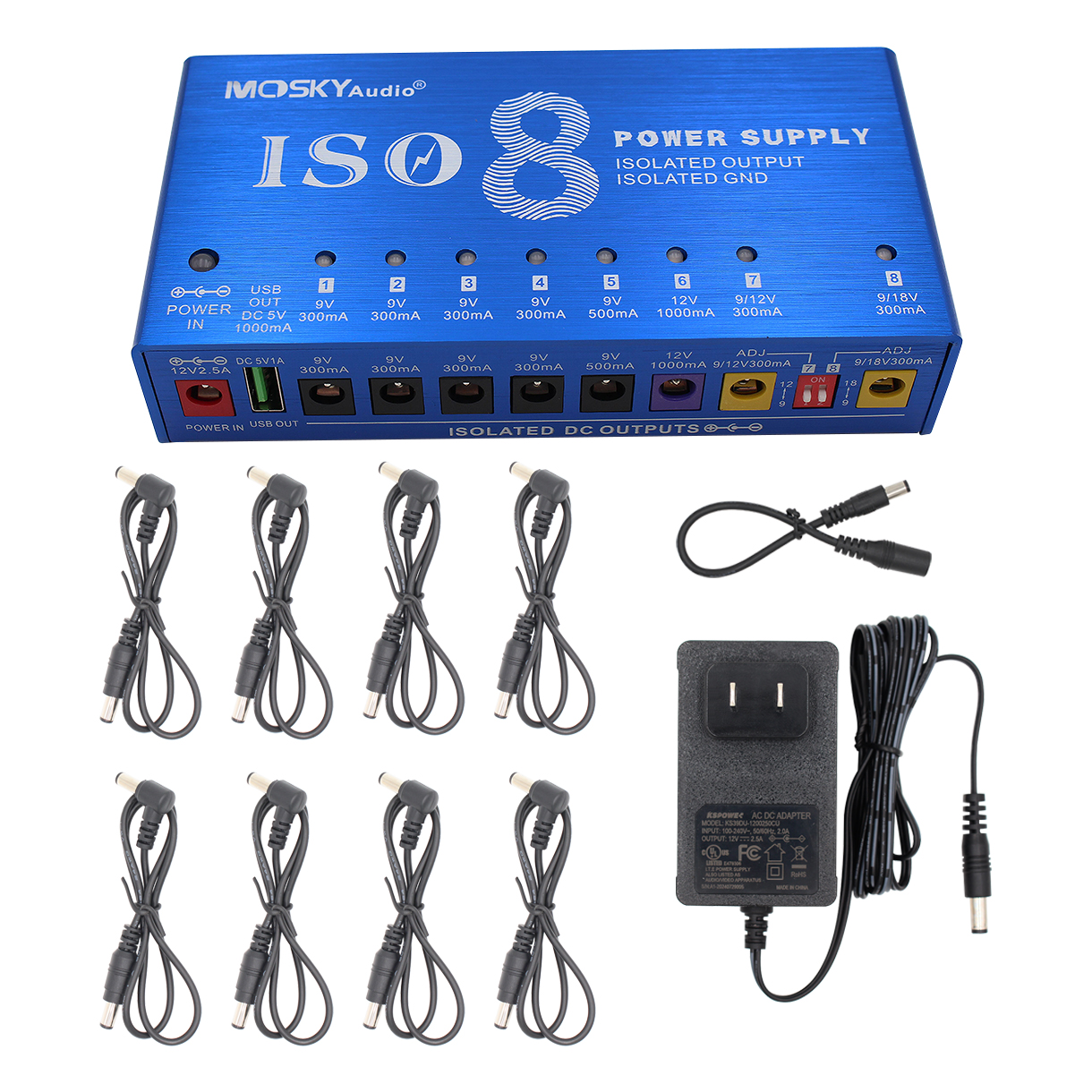

Packing list:
1 *pc ISO 8 power supply
1 *pc 12v 2500mA power adpter
8 *pcs DC Cables
1 *pc reversed polarity
1 *pc owner's manual
POWER SUPPLY
ISOLATED OUTPUT
ISOLATED GND
FULLY ISOLATED POWER SUPPLY
(1) DC Input Jack: Plug the included adaptor (DC12V , 2,500mA)
into the jack, and do not use adapter from elsewhere.
(2)USB output jack: DC5V max1000mA ;use for music light,cellphone,
iPad and other portable device.
(3)1- 4 DC outputs : DC 9V,max300mA ; they are suitable for
ordinary effectors.
(4)5 DC output: DC9V max 500mA ; suitable for digital effects pedals .
(5)6 DC output: DC12V max 1000mA ; suitable for digital effects pedals
(6)7 DC output :DC 9V/12V adjustable ,max 300mA power
output, it can adjust by a switch.
(7) 8 DC outputs :DC 9V/18V adjustable ,max 300mA power
output, it can adjust by a switch.
(8) 1 to 8 ouputs LED power indicator: each DC output jack has a
related LED power indicator,the LED power indicator goer out if any
output overload or short-circuit protected.
Each output has a overload and short-circuit protection circuit,the
LED power indicator goes out if any output overload or short-circuit
protected.
Note :The LED will be on only when plug the included DC cable to
the output jack.
Features:
1.One USB 5V1000mA output,used for music led ,cellphone,ipad etc .
2.4 Outputs DC 9V 300mA outputs
3.1 Output DC 9V 500 mA outputs
4.1 Output DC 12V 1000mA output
5.1 Ouput DC 9V/12V adjustable outputs,maxinmun output
current is 300mA
6.1 Ouput DC 9V/18V adjustable outputs,maxinmun output
current is 300mA
7 All DC outputs are isolated output and isolated GND
Packing list:
1 *pc ISO 8 power supply
1 *pc 12v 2500mA power adpter
8 *pcs DC Cables
1 *pc reversed polarity
1 *pc owner's manual
