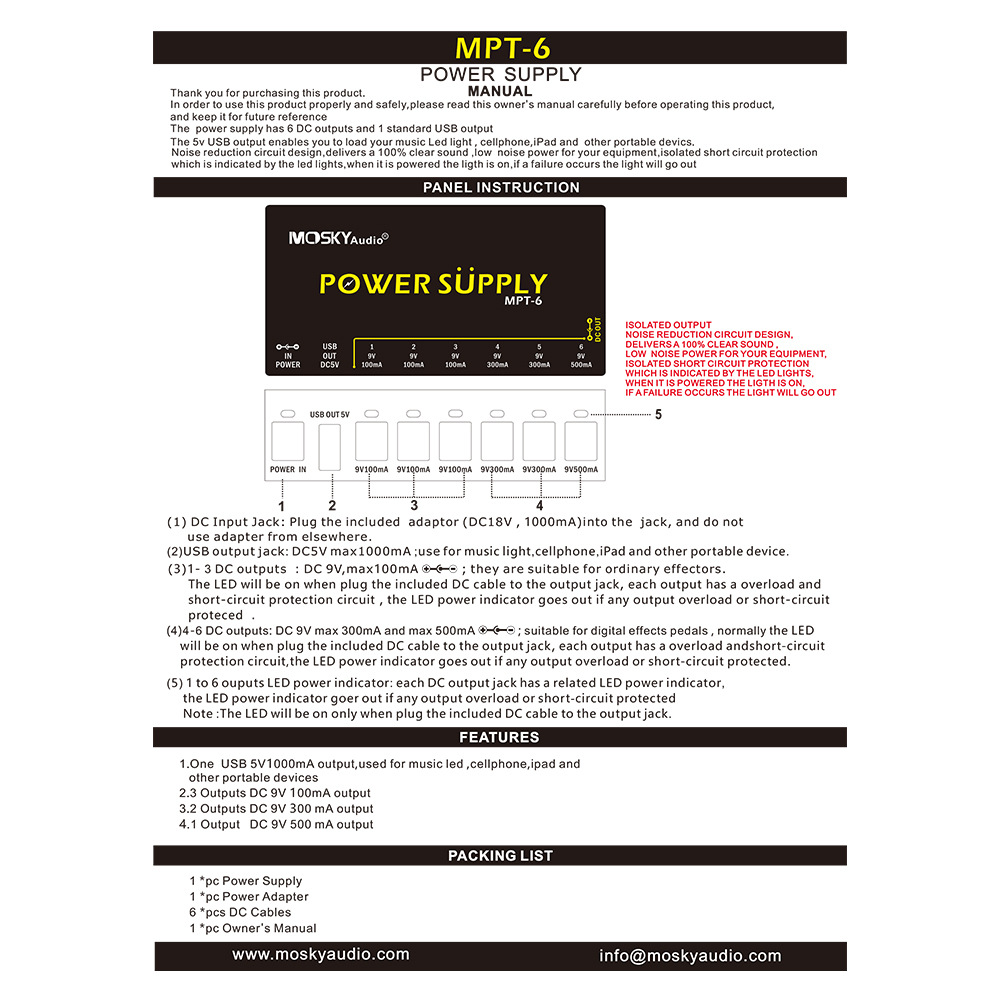

MPT-6 POWER SUPPLY

MPT-6 POEWR SUPPLY

The  power supply has 6 DC outputs and 1 standard USB output

The 5v USB output enables you to load your music Led light , cellphone,iPad and  other portable devics.

Noise reduction circuit design,delivers a 100% clear sound ,low  noise power for your equipment,isolated short circuit protection

which is indicated by the led lights,when it is powered the ligth is on,if a failure occurs the light will go out

(1) DC Input Jack: Plug the included  adaptor (DC18V , 1000mA)into the  jack, and do not

use adapter from elsewhere

(2) USB output jack: DC5V max1000mA ;use for music light,cellphone,iPad and other portable device

(3)1- 3 DC outputs  : DC 9V,max100mA   ; they are suitable for ordinary effectors.

The LED will be on when plug the included DC cable to the output jack, each output             has a overload and short-circuit protection circuit , the LED power indicator goes out           if any output overload or short-circuit proteced

(4)4-6 DC outputs: DC 9V max 300mA and max 500mA   ; suitable for digital effects pedals            normally the LED will be on when plug the included DC cable to the output jack,                  each output has a overload andshort-circuit

protection circuit,the LED power indicator goes out if any output overload or short-              circuit protected.

(5) 1 to 6 ouputs LED power indicator: each DC output jack has a related LED power                 indicator ,the LED power indicator goer out if any output overload or short-circuit                protected

Note :The LED will be on only when plug the included DC cable to the output jack.

FEATURES

1.One  USB 5V1000mA output,used for music led ,cellphone,ipad and

other portable devices

2.3 Outputs DC 9V 100mA output

3.2 Outputs DC 9V 300 mA output

4.1 Output   DC 9V 500 mA output

PACKING LIST

1 *pc Power Supply

1 *pc Power Adapter

6 *pcs DC Cables

1 *pc Owner's Manual

Weight :424g

Dimensions : 19*15.5*6.2CM
